Tank Mixing

Tank Mixing using Jet Mixers

Tank Jet Mixers are mass momentum exchange devices. They use pressurised liquid energy, provided by an external recirculating Pump, to entrain, mix and pump a secondary in-tank liquid, to achieve bulk mixing.



Importantly, our Tank Jet Mixers have no moving parts. This provides unrivalled reliability, giving you complete peace of mind.



Operators choose this reliable technology for many applications in the oil & gas industry. This includes blending, solids suspension, dilution, heat distribution, pH control, temperature control and homogeneity.

We offer wide range of Jet Mixer designs,
perfectly tailored to suit your process requirements.

Advantages of Tank Jet Mixers

No moving parts inside the tank

Virtually maintenance free once installed

Quick mixing times (3-Parts Suction within the tank to every 1-Part Motive fluid)

Custom designed to suit specific fluid properties and Tank geometry

Suitable for suspension of solids and mixing sludges

No limitation on tank size, multiple mixers can be installed

Can be ‘through-the-wall’ designs, so no access required for installation

Fast-track design, manufacture and deployment available

Tank Jet Mixers : Principle of Operation

In operation, pressurised motive liquid is discharged through the Jet Nozzle into the suction chamber. The change from pressure energy to kinetic energy (velocity) creates a region of low pressure that entrains liquid from within the Tank via open suction ports.

The motive and suction liquid streams combine and mix under high shear conditions in the Jet Mixer Diffusers and the resulting intimately mixed fluid is discharged into the bulk of the Tank liquid as high velocity turbulent jets.

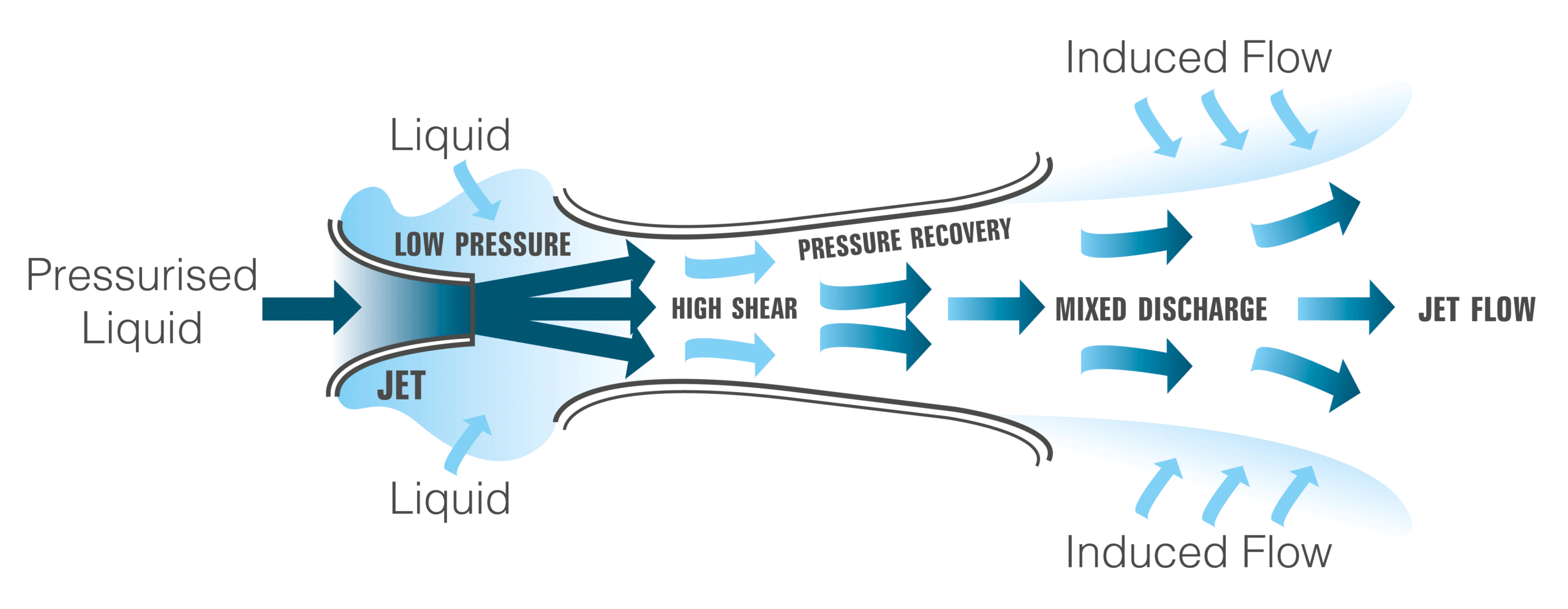

Jet Mixer Operating Principle

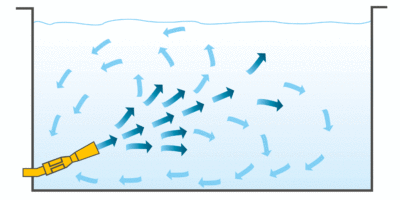

How Tank Mixers Work

Our core capabilities to support your Tank Mixing Project

In-house process design, mechanical design and manufacture of Jet Mixers

In-house CFD Analysis to determine the optimum Jet Mixer layout

Various material options available to suit the process

Manifold design and supply

Design and supply of Jet Mixer structural supports

Flexible Design & Layout Options

Each Tank Jet Mixing system is custom designed to suit the mixing requirements. We offer both single or multiple Jet Mixer arrangements, as required.



Transvac Jet Mixers are often supplied with an angle-creating, flanged spool to direct flow through a Tank wall or are mounted on an in-tank manifold to evenly distribute the mixing energy.



Standard Transvac Tank Jet Mixing systems entrain 3-parts suction liquid for every 1-part motive liquid.



The size, number of Jet Mixers required, and system layout depends on the Tank volume, mixing time, temperature, liquid compositions and mixing duty.



Transvac can supply Jet Mixers only with support spools or in-tank manifolds. Alternatively, Transvac can provide manifold designs, which can be made locally.

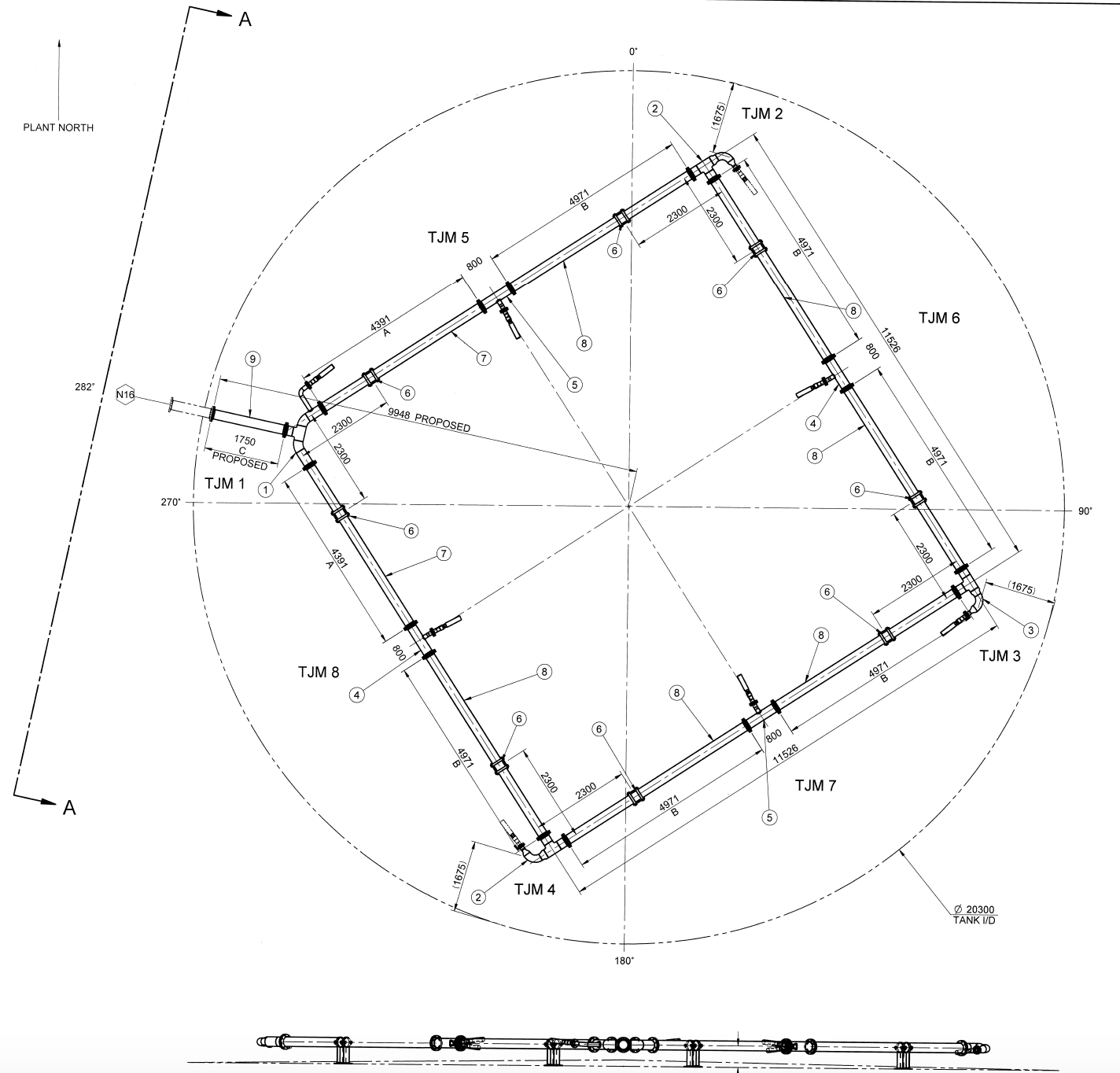

Tank Mixing Manifold Design

Tank Manifold Design

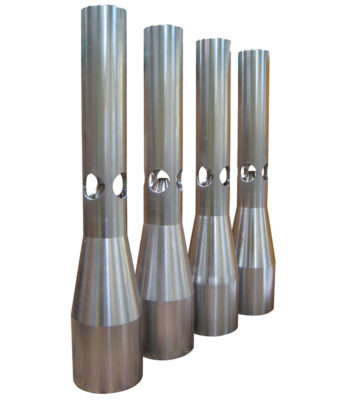

Stainless Steel Tank Jet Mixers from Transvac

Stainless Steel Tank Jet Mixers

Typical Applications & Fluids

  • Oil
  • Diesel
  • Blending of lube oils on petroleum plant
  • Pygas
  • Oil sludge
  • C9+
  • Equalisation
  • Petroleum

Mixing proven through CFD



CFD modelling is perfectly suited to studies concerning Tank Mixing Solutions. Transvac can offer a detailed CFD analysis to optimise the arrangement of Jet Mixers in tanks to avoid fluid bypassing or stagnation.



Transvac can assess the quality of mixing based on various installation options, including manifold layouts; Jet Mixer inlet elevations; and angles. This is particularly beneficial for larger tanks where stagnation can be difficult to predict without CFD.



More complex studies can be undertaken focusing on the mixture’s physical properties as well as fluid concentrations.



Learn more about our CFD capabilities here.
