Hygienic Process

Hygienic Design Ejectors

Almost all of Transvac’s products can be offered as a hygienic design. Our Ejectors, Jet Heaters and Jet Mixers can be fully custom designed for hygienic applications, to suit your specific process requirements.



Available as standard in 316L stainless steel with sanitary fittings, all units are designed to meet current hygienic standards, suitable for C.I.P cleaning.



Hygienic Ejectors are offered with sanitary tri-clamp fittings instead of bolted flanges and receive a super polished finish to the inside to ensure maximum cleanliness.



Typical Hygienic Ejector designs include Liquid Jet Pumps for dosing liquids, Tank Jet Mixers for mixing liquids, Liquid Jet Solids Pumps for dosing solids and a variety of Steam Ejectors such as Instantaneous Jet Heaters and Direct Injection Heaters.



Hygienic hopper systems can also be designed and manufactured by Transvac.

Hygienic Design Ejectors and Jet Mixers

Features & Advantages of Hygienic Design

300 Series Stainless Steel (Typically 316 SS)

Sanitary Fittings

Smooth or polished surface finish

Impervious to water, free of cracks and crevices, non reactive, corrosion resistant, and nontoxic

Allows easy and quick cleaning using normal tools

Hygienic Products



The following products are available as hygienic design;

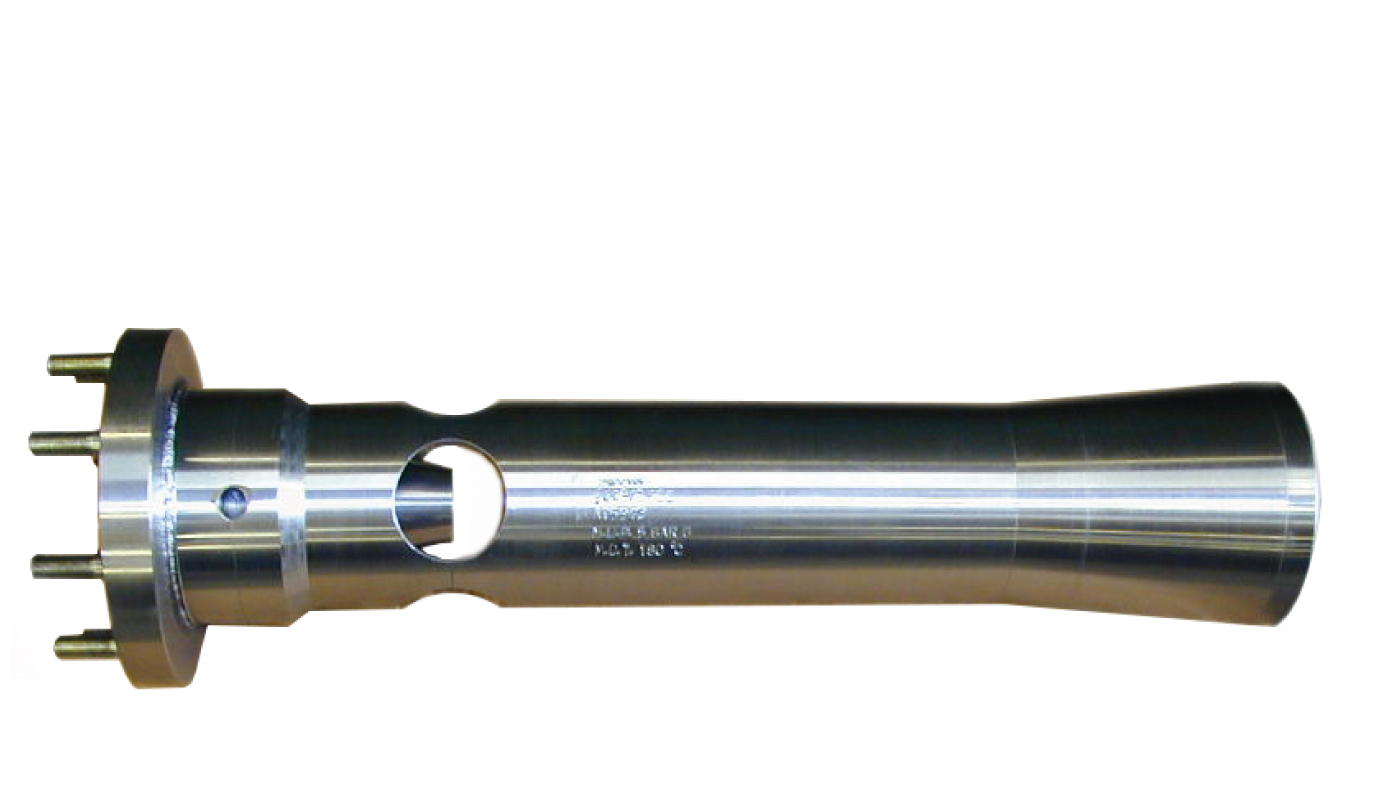

Hygienic Direct Injection Heaters

Tank Heating

Transvac Direct Injection Heaters use steam to heat liquors in tanks. The unit heats without producing the noise and vibration normally experienced when steam is injected using sparge nozzles. Hygienic steam also allows direct heating of food products.

Learn more

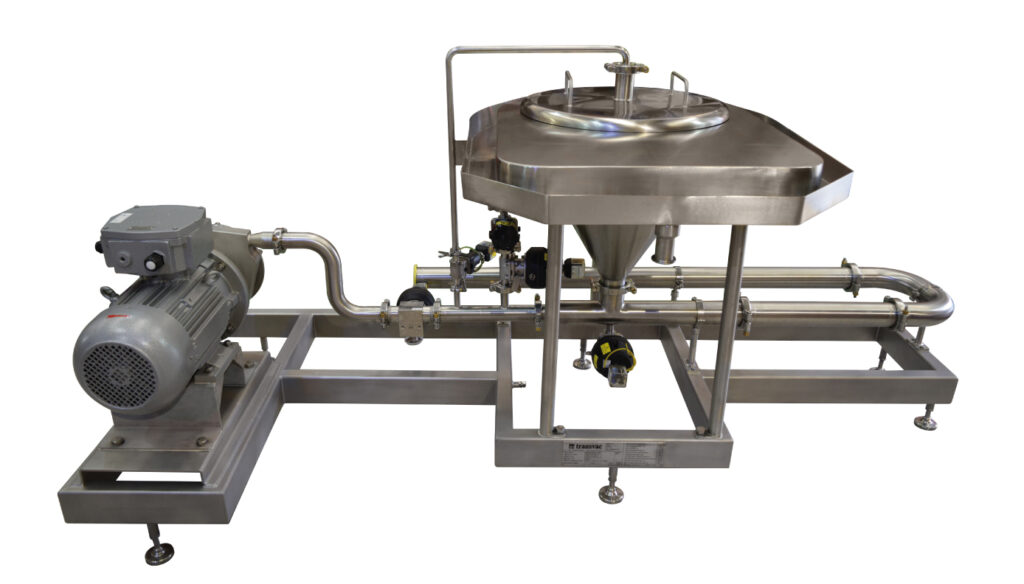

Hygienic Powder Dosing

Liquid Jet Solids Pumps

Transvac Liquid Jet Solids Pumps are used for entraining and wetting many powders for hygienic applications including sugar, milk, salt, citric acid, starches, CMC, Malto-dextrin etc. They can be fed manually from bags or via a screw feeder, to minimise powder handling.

Learn more
Hygienic Jet Heaters

Instantaneous Jet Heaters

Transvac Jet Heaters use steam for the silent inline heating of liquids. Most applications involve heating water, but with the advent of hygienic steam, direct heating of food products is becoming more common; including reconstituted milk, saline, starches and C.I.P. liquor.

Learn more

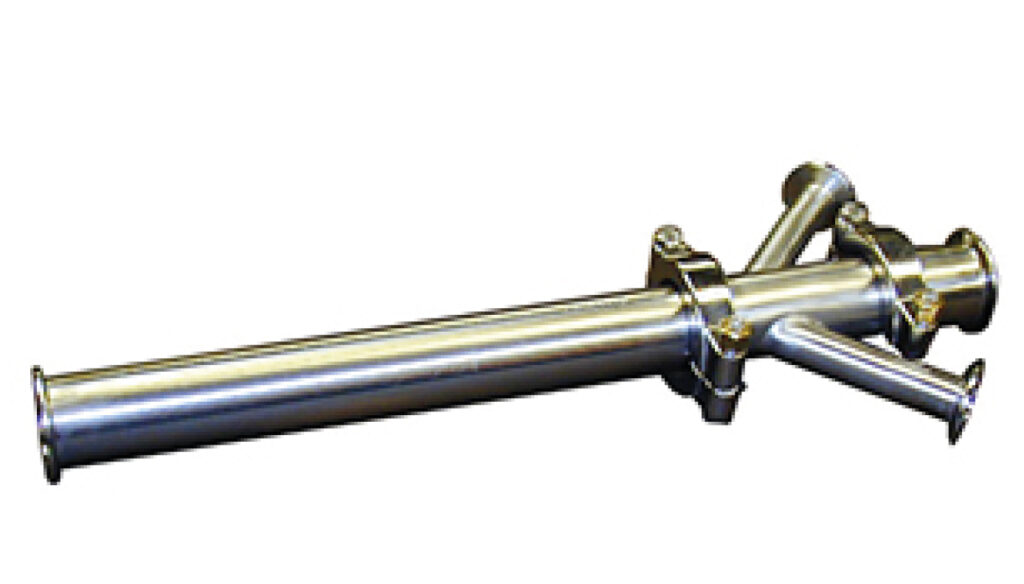

Hygienic Liquid Jet Pumps

Liquid Jet Pumps

Transvac Liquid Jet Pumps are used for pumping or blending liquids, Such as entraining chemicals into hot water for C.I.P cleaning or for inline pumping and mixing of food products.

Learn more

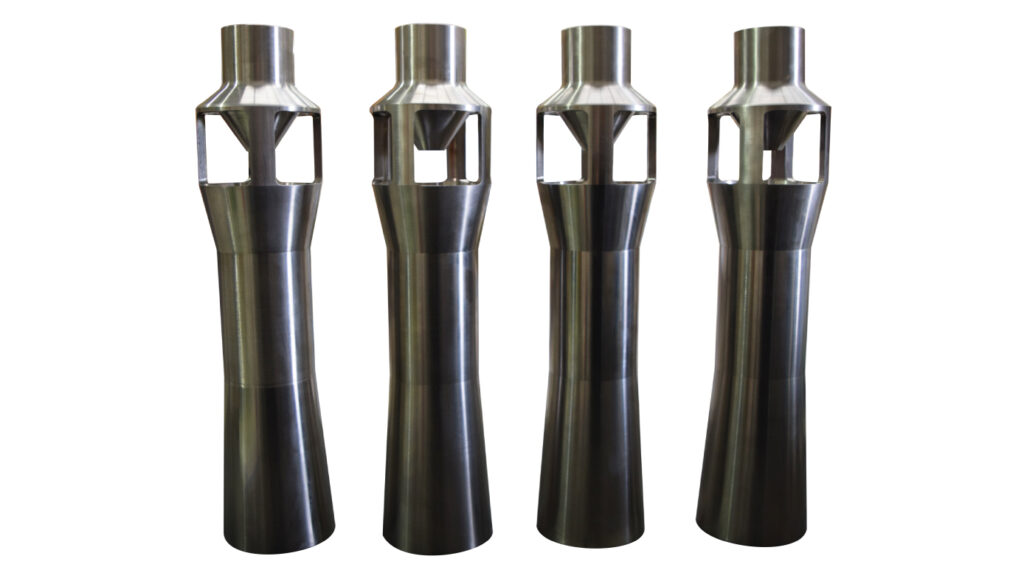

Hygienic Tank Jet Mixers

Tank Jet Mixers

Transvac Tank Jet Mixers can be installed on their own or on the discharge of a Liquid Jet Solids Pump system. They use pump energy to induce mixing and are used for low viscosity liquids such as milk and sugar solutions etc.

Learn more
